codecov R-CMD-check CRAN checks CRAN Version

aRtpack R package logo featuring white text over a hexagonal badge with flowing, curved lines in rainbow colors including purple, blue, green, yellow, orange, and red, creating a dynamic swirled pattern against a purple border

The goal of artpack is to help generative artists of all levels create generative art in R. The artpack package is intended for use with the tidyverse suite. More specifically, with the ggplot2 package.

Installation

You can install {artpack} from CRAN with the following code:

install.packages("artpack")

You can install the development version of artpack from GitHub with:

# install.packages("devtools")
devtools::install_github("Meghansaha/artpack")

Overview

artpack is a package that helps users create generative art in R with a “data-centric” approach and is currently in early development. artpack is intended to be used with ggplot2 for artistic purposes.


What does data-centric mean in this context?

“data-centric” means that the package focuses on providing direct data outputs to the user, as opposed to providing geom_fxs() like most supplemental packages.


Why data outputs? Wouldn’t geoms be more efficient or user-friendly?

Not necessarily. Data outputs are provided to afford the user freedom of manipulation and choice. artpack is developed to make the user’s life easier by making data generation for ggplot2 art easier. All data outputs are intended to be used with existing ggplot2 geoms like geom_polygon() and geom_path(). For artistic purposes, it can be much easier for a user to manipulate direct data frames, as opposed to trying to “hack” geoms.


Brief Examples

artpack can be used to create specified dataframes that will map art when fed into ggplot2 functions:

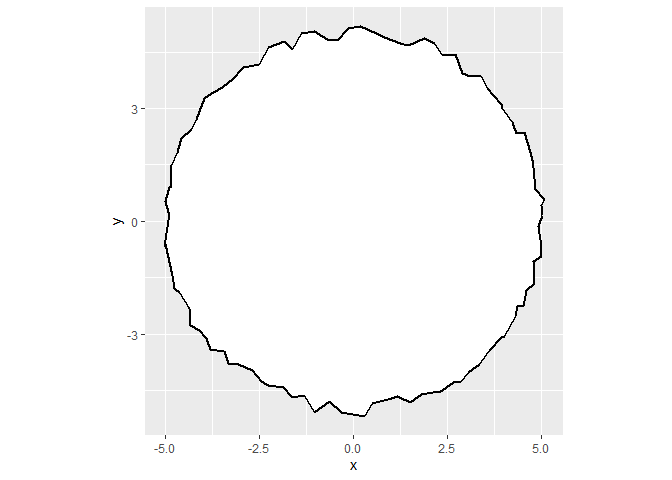

For example, circle_data() creates a data frame that maps a circle on to a ggplot:


#| fig.alt: >
#|   ggplot plot showing a black outlined circle with
#|   irregular, slightly wavy edges centered at the origin
#|   of a coordinate grid, with x and y axes ranging from
#|   approximately -5 to 5, set against a light gray background,
#|   the default ggplot2 plot theme.

# Load your libraries#
library(ggplot2)
#> Warning: package 'ggplot2' was built under R version 4.4.3
library(artpack)

# Use the function to create a data frame#
df_circle <-
  circle_data(
    x = 0,
    y = 0,
    radius = 5,
    color = "black",
    fill = "white"
  )

# Feed it into a ggplot#
df_circle |>
  ggplot(aes(x = x, y = y)) +
  geom_polygon(
    fill = df_circle$fill,
    color = df_circle$color,
    linewidth = 1,
    position = position_jitter(width = .1, height = .2)
  ) +
  coord_equal()



rotator will mathematically “rotate” existing data points in a data frame:


#| fig.alt: >
#|   ggplot plot showing a bright green square rotated
#|   approximately 120 degrees, positioned over a red
#|   outlined square on a coordinate grid with x and y axes
#|   labeled, set against a light gray background, the
#|   default ggplot2 plot theme.



# Load in your libraries#
library(ggplot2)
library(artpack)

# Make a square yourself if you want#
original_square <-
  data.frame(
  x = c(0, 3, 3, 0, 0),
  y = c(0, 0, 3, 3, 0)
)

# Rotate your data points by 120° and...
# ...anchor the rotation around the center of the square#
rotated_square <-
  rotator(
  data = original_square,
  x = x,
  y = y,
  angle = 120,
  anchor = "center"
)

# Plot the original and rotated squares to see the difference#
ggplot() +
  geom_path(
    data = original_square,
    aes(x, y),
    color = "red"
  ) +
  geom_polygon(
    data = rotated_square,
    aes(x, y),
    fill = "green"
  ) +
  coord_equal()



artpack functions are designed to be used in any part of your workflow. Experiment for some cool results:

# Load in your libraries#
library(ggplot2)
library(purrr)
#> Warning: package 'purrr' was built under R version 4.4.3
library(dplyr)
#> Warning: package 'dplyr' was built under R version 4.4.3
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(tibble)
#> Warning: package 'tibble' was built under R version 4.4.3
library(artpack)

# Create a base square with artpack if you want#
square <- square_data(x = 0, y = 0, size = .1, group_var = TRUE)

# Create square specs to be iterated on#
n_square <- 500
scaler <- seq(1, 100, length = n_square)
fills <- art_pals("imagination", n = n_square)
angles <- seq(0, 360, length = n_square)
group_n <- group_numbers(1:n_square)

# Add a random transformation for a little razzle dazzle ✨
theta <- seq(0, 30, length = 250)

# Create your list of specs to be iterated on#
list_opts <-
  list(
    scaler,
    fills,
    angles,
    group_n
  )

# Create the final data frame#
df <-
  pmap(list_opts, ~ rotator(
    square |>
      mutate(
        x = (x + ..1),
        y = (y * ..1),
        fill = ..2,
        group = paste0(group, ..4)
      ),
    x = x, y = y, angle = ..3
  )
  ) |>
  list_rbind() |>
  mutate(
    x = x + cos(theta),
    y = y + sin(theta)
  )

# Plot the final image#
df |>
  ggplot(aes(x = x, y = y, group = group)) +
  theme_void() +
  theme(plot.background = element_rect(fill = "#000000")) +
  geom_path(
    color = df$fill,
    alpha = .2
  )

Example ggplot of art created with the artpack package.  Abstract flowing wave form with rainbow gradient colors  transitioning from pink and magenta on the left, through yellow and green in the center, to blue and purple on the right, with fine vertical line texture throughout, set against a black background.
